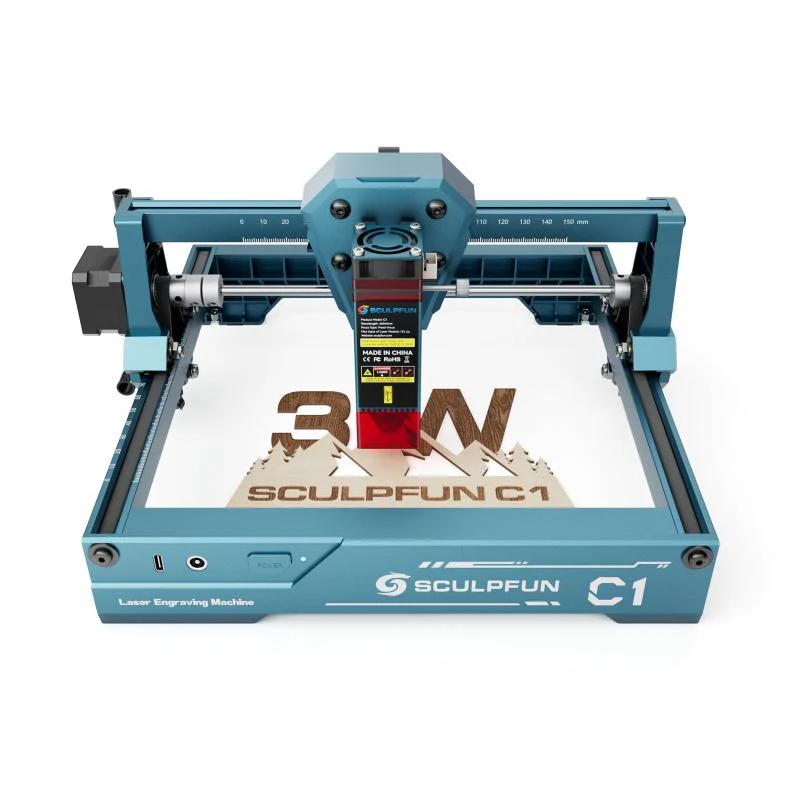

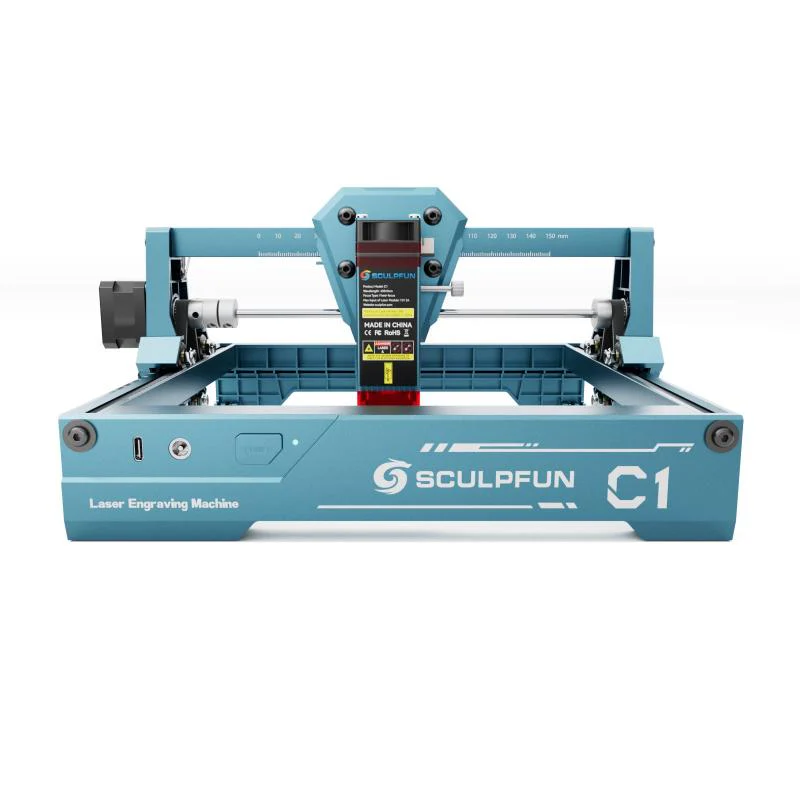

Sculpfun C1 Mini Laser Engraving Machine Perfect for Beginners & Small Business Owners

User Manual

Please note:

WIM8/WIN10/WIN11 systems do not need to install drivers and can be directly connected to the machine for use

WIN7 systems require the installation of relevant drivers.

WIN XP systems do not support connecting to the machine

MAC OS system versions above 10.7 can directly use the machine without installing drivers.

MAC OS system versions below 10.7 cannot be connected to the machine for the time being and you need to upgrade the system version

Main Features:

1. Portable And Compact Design:
C1 is one of the smallest portable laser engraving machines on the market. Its compact size and lightweight design make it very portable, allowing users to easily take it anywhere. It is smaller and lighter than most engraving machines, and does not take up too much space.

2. Beginner Friendly Features:
The Sculpfun C1 is an ideal choice for beginners. It comes pre-assembled with user-friendly features, which is ready to use right out of the box. This eliminates the hassle of assembly and guarantees a great user experience. Equipped with limit switches on the X-axis and Y-axis to ensure safety and provide an easy reset option.

3. Excellent Engraving Capabilities:
The C1 miniature laser engraver uses a single 3W laser core with an ultra-fine spot size of 0.04mm. The low power laser head maintains an ultra-fine laser output, enabling users to create detailed engravings on every piece.

4. Space Utilization Maximization&Precise Positioning:
In spite of its mini size, the sculpfun C1 laser engraver offers a large engraving area of 150*130mm, maximizing the space utilization. It allows users to process several small items simultaneously. Additionaly, the precise scales designed on the frame provide clear reference points on the X and Y axis, which realize precise positioning for complex and detailed projects.

5. High Compatibility:
It can be used with professional laser engraving software LightBurn (MacOS & Windows) and LaserGRBL (Windows Only), and is compatible with Windows and MacOS systems, allowing you to work smoothly. Moreover, it has a strong image input function that supports multiple common image formats such as JPG, PNG, BMP, GIF, SVG, AI, etc., providing a rich and diverse material selection for your creative ideas to meet the usage needs in different scenarios.

6. Exclusive Rotary Roller:
The C1 mini laser engraving machine can be used with RA MINI rotary roller, the addition of which enables the machine to carve patterns or texts on cylindrical objects such as wine glasses, pen holders, bamboo and wooden cylinders, etc. This greatly expands the application scenarios of the machine.

Product Name: Sculpfun C1
Model: C1

Laser Power: 3W
Spot Size: 0.04*0.04mm
Machine Size: 290*250*140mm
Machine Weight: 1.05KG
Working Area: 150*130mm
Compatible Systems: Windows/Mac
Packing Weight: 1.9KG
Packing Size: 332*302*178mm

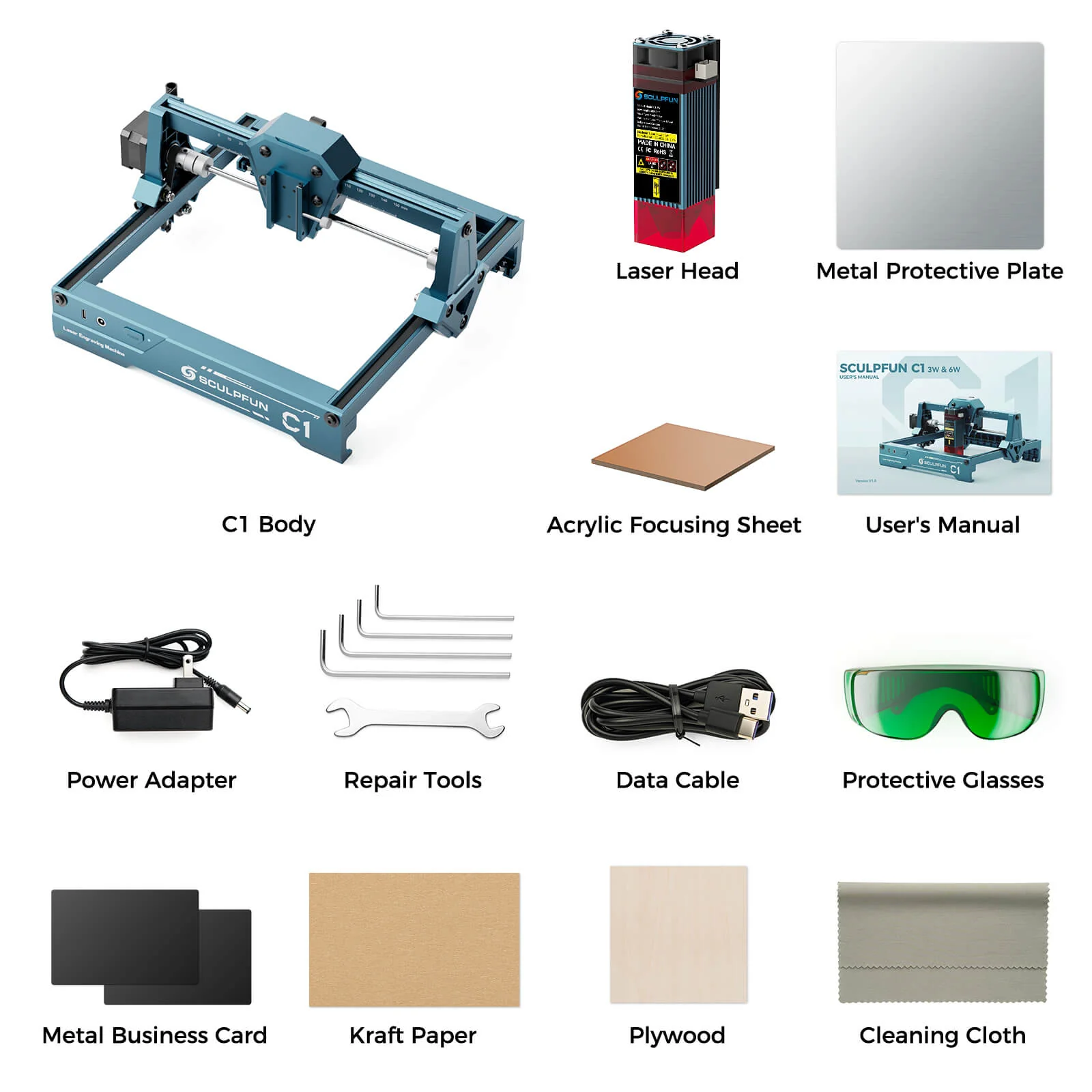

Packing List:
1* C1 machine
1* Laser head
1* User manual
1* USB data cable
1* adapter
1* Acrylic focusing sheet
1* Toolkit
1* Kraft paper
1* Basswood board
2* Metal business card
1* Goggles
1* Glasses cloth
1* Metal protective plate
